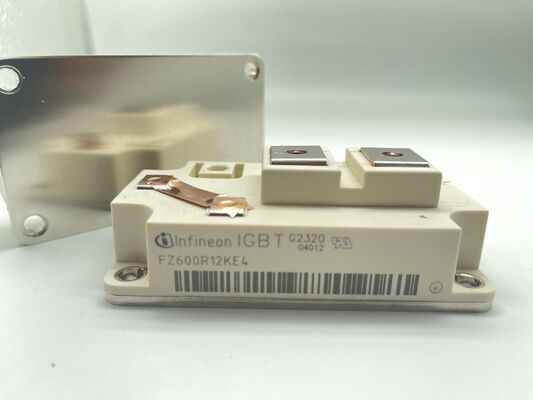

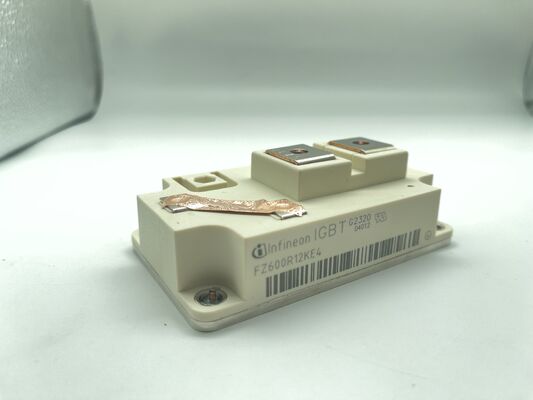

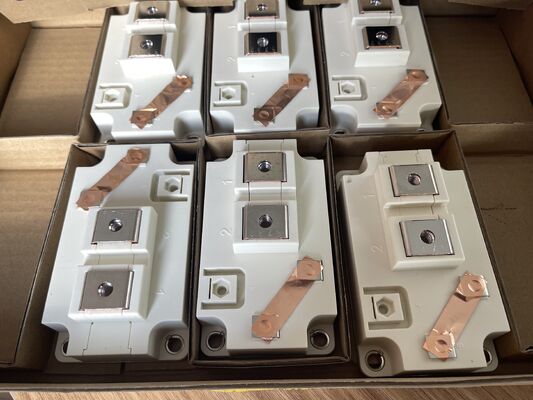

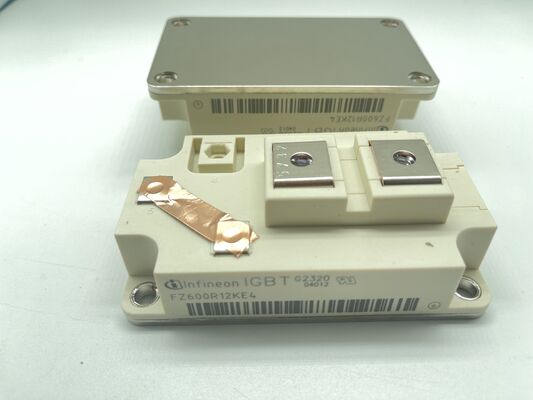

FZ600R12KE4HOSA1 1200V/600A IGBT Module Low VCE(sat) High Speed Switching Low Loss Press-Fit Pins Isolated Baseplate NTC Sensor Industrial Grade for Heavy-Duty Drives & Wind Converters

FZ600R12KE4HOSA1 1200V/600A IGBT Module Low VCE(sat) High Speed Switching Low Loss Press-Fit Pins Isolated Baseplate NTC Sensor Industrial Grade for Heavy-Duty Drives & Wind Converters

Features

• Extended Operation Temperature Tvj op

• Low Switching Losses

• Unbeatable Robustness

• VcEsat with positive Temperature Coefficient

• LOW VCEsat

• 4 kV AC 1min Insulation

• Package with CTl>400

• High Creepage and Clearance Distances

• lsolated Base Plate

• Standard Housing

Applications

• High Power Converters

• Motor Drives

• UPS Systems

• Wind Turbines

Description

The FZ600R12KE4HOSA1 is a high-power dual IGBT module engineered for robust performance in demanding high-current applications. Rated for 1200V and 600A, it delivers reliable power handling for industrial-scale energy conversion. The module is optimized for efficiency, featuring a low collector-emitter saturation voltage (VCE(sat)) and low switching losses, which are critical for minimizing power dissipation and thermal stress.

A key feature of this module is its press-fit pin technology, which provides a solder-free, mechanically robust interconnection for enhanced reliability and longer power cycling lifetime. It includes a built-in NTC thermistor for precise temperature monitoring and a fully isolated baseplate for safe and efficient thermal management. Its industrial-grade construction ensures high ruggedness and operational stability under strenuous conditions.
