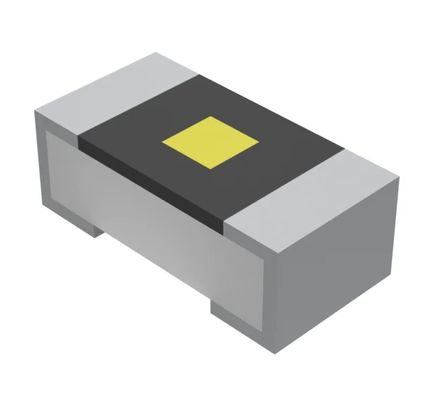

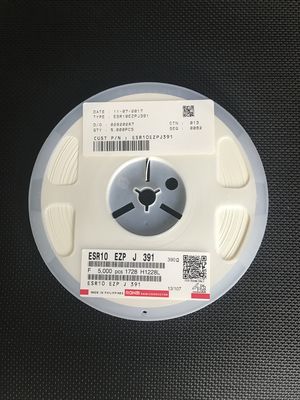

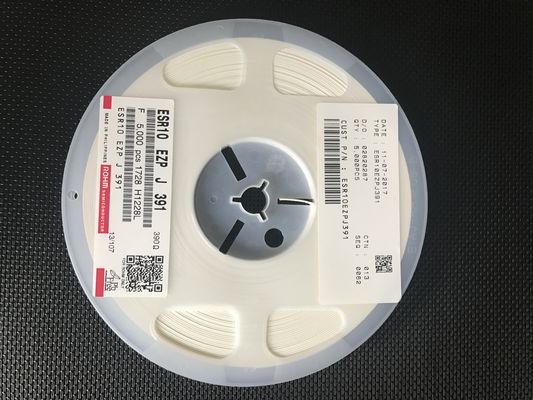

ESR10EZPJ391 390pF Capacitance 50V Rating C0G/NP0 Material ±5% Tolerance 0603 Case High Frequency Low Loss and High Reliability for Stable Circuits

ESR10EZPJ391 390pF Capacitance 50V Rating C0G/NP0 Material ±5% Tolerance 0603 Case High Frequency Low Loss and High Reliability for Stable Circuits

Features

1:Capacitance: 390 Picofarads (pF)

2:Voltage Rating: 50 Volts (V)

3:Dielectric: C0G (NP0) - Ultra-Stable, Low Loss

4:Tolerance: ±5% (J)

5:Case Size: 0603 (1608 Metric)

6:High-Frequency Performance: Excellent for RF & Analog Applications

7:Low Loss: Very Low Dissipation Factor and ESR

8:High Reliability: Stable performance over time, voltage, and temperature

Applications

1:RF and High-Frequency Circuits: Its stable capacitance and low parasitic effects make it ideal for impedance matching networks, RF filters, and oscillators in communication systems.

2:Precision Timing and Oscillator Circuits: Commonly used in crystal oscillator circuits and timing applications where a stable capacitance value is critical for accurate frequency control.

3:Analog Signal Processing: Perfect for active and passive filters, integrators, and sample-and-hold circuits where low distortion and minimal signal loss are paramount.

4:Power Supply Decoupling (for sensitive ICs): Provides stable, low-ESR decoupling for noise-sensitive components like analog-to-digital converters (ADCs), digital-to-analog converters (DACs), and voltage references, especially in their high-frequency ranges.

Description

The ESR10EZPJ391 is a high-performance multilayer ceramic capacitor (MLCC) designed for critical circuit applications requiring exceptional stability and low loss. With a capacitance of 390pF and a voltage rating of 50V, this component is engineered using the premium C0G (NP0) dielectric material. This ensures a nearly zero temperature coefficient, excellent frequency characteristics, and minimal capacitance drift over time and voltage.

Housed in a compact and standardized 0603 case size, it offers a tight tolerance of ±5% (J) for precision design needs. It exhibits very low dissipation factor and low ESR, making it an ideal choice for high-frequency filtering, impedance matching, resonant circuits, and other analog signal paths. The ESR10EZPJ391 provides superior reliability and stability, making it a perfect component for telecommunications infrastructure, test and measurement equipment, and high-performance consumer electronics.

INFORMATION

Drawing

Our advantage :phones, PDA's, notebook comput.ers

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^
