تفاصيل المنتج:
شروط الدفع والشحن:
|
| وظيفة: | STEP-UP ، خطوة الاتجاه | تكوين الإخراج: | إيجابية أو سلبية |
|---|---|---|---|
| طوبولوجيا: | باك ، تعزيز | نوع الإخراج: | قابل للتعديل |
| عدد المخرجات: | 1 |

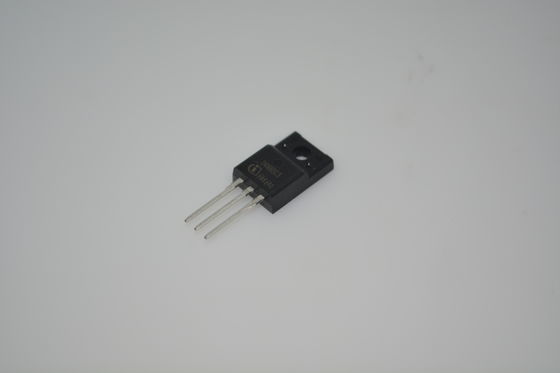

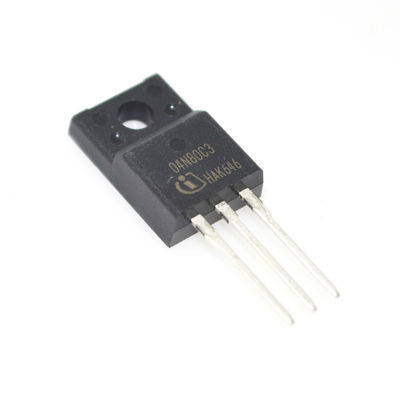

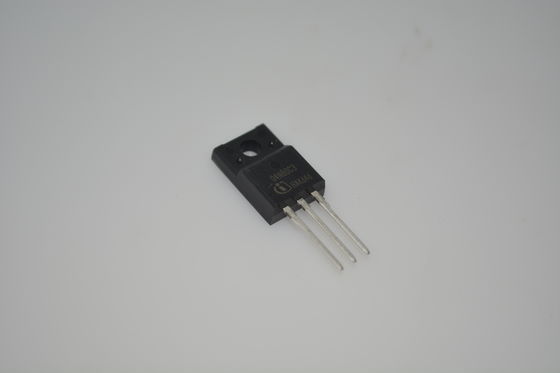

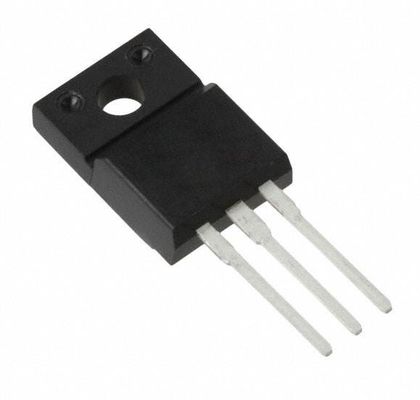

SPA04N80C3XKSA1 Power MOSFET 800V Ultra-High Voltage 4A Current Low Rds(on) Super Junction Technology Low Gate Charge High Efficiency Halogen-Free Robust Performance for SMPS & Industrial Drives
Features
New revolutionary high voltage technology
Extreme dv/dt rated
High peak current capability
Qualified according to JEDEC1) for target applications
Pb-free lead plating; RoHS compliant
Ultra low gate charge
Ultra low effective capacitances
Fully isolated package (2500 VAC; 1 minute)
Applications
1:Switch Mode Power Supplies (SMPS)
2:Power Factor Correction (PFC) circuits
3:Industrial motor drives and controls
4:Lighting ballasts and LED drivers
5:Renewable energy systems
Description
The SPA04N80C3XKSA1 is a high-voltage N-channel power MOSFET utilizing advanced super junction technology, delivering exceptional efficiency and reliability for demanding power conversion applications.
INFORMATION
|
Category
|
|
|
|
Mfr
|
|
|
|
Series
|
|
|
|
Packaging
|
Tube
|
|
|
Part Status
|
Obsolete
|
|
|
FET Type
|
|
|
|
Technology
|
|
|
|
Drain to Source Voltage (Vdss)
|
800 V
|
|
|
Current - Continuous Drain (Id) @ 25°C
|
|
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
10V
|
|
|
Rds On (Max) @ Id, Vgs
|
1.3Ohm @ 2.5A, 10V
|
|
|
Vgs(th) (Max) @ Id
|
3.9V @ 240µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs
|
31 nC @ 10 V
|
|
|
Vgs (Max)
|
±20V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
570 pF @ 100 V
|
|
|
FET Feature
|
-
|
|
|
Power Dissipation (Max)
|
38W (Tc)
|
|
|
Operating Temperature
|
-55°C ~ 150°C (TJ)
|
|
|
Grade
|
-
|
|
|
Qualification
|
-
|
|
|
Mounting Type
|
Through Hole
|
|
|
Supplier Device Package
|
PG-TO220-3-31
|
|
|
Package / Case
|
|
|
|
Base Product Number
|
Drawing
