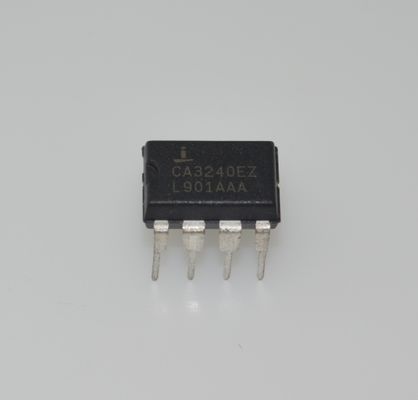

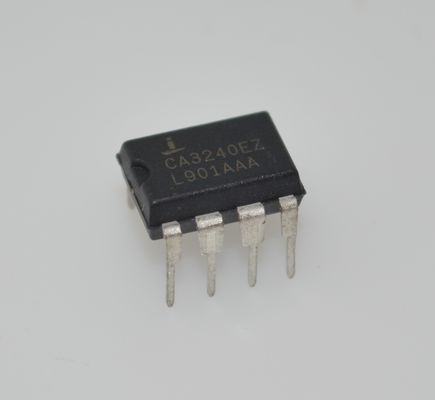

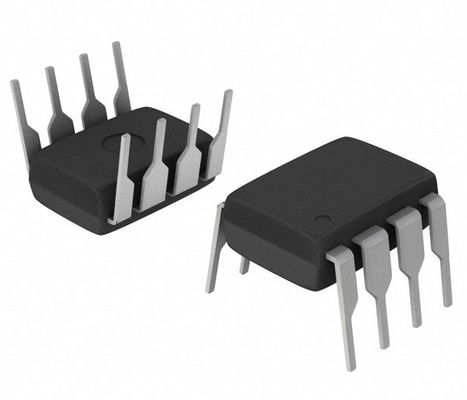

CA3240E 4.5MHz BIMOS Op Amp with MOSFET Input/BI-FET Output 15kV ESD Protection Single or Dual Supplies from 5V to 16V Low Input Current for Precision Instrumentation Circuits

CA3240E 4.5MHz BIMOS Op Amp with MOSFET Input/BI-FET Output 15kV ESD Protection Single or Dual Supplies from 5V to 16V Low Input Current for Precision Instrumentation Circuits

Features

• Dual Version of CA3140

• Internally Compensated

• MOSFET Input Stage

- Very High Input Impedance (ZIN) 1.5TΩ (Typ)

- Very Low Input Current (II) 10pA (Typ) at ±15V

- Wide Common-Mode Input Voltage Range (VICR): Can Be Swung 0.5V Below Negative Supply Voltage Rail

• Directly Replaces Industry Type 741 in Most Applications

• Pb-Free Available (RoHS Compliant)

Applications

• Ground Referenced Single Amplifiers in Automobile and Portable Instrumentation

• Sample and Hold Amplifiers

• Long Duration Timers/Multivibrators (Microseconds Minutes-Hours)

• Photocurrent Instrumentation

• Intrusion Alarm System

• Comparators

• Instrumentation Amplifiers

• Active Filters

• Function Generators

• Power Supplies

Description

The CA3240A and CA3240 are dual versions of the popular CA3140 series integrated circuit operational amplifiers. They combine the advantages of MOS and bipolar transistors on the same monolithic chip. The gate-protected MOSFET (PMOS) input transistors provide high input impedance and a wide common-mode input voltage range (typically to 0.5V below the negative supply rail). The bipolar output transistors allow a wide output voltage swing and provide a high output current capability.

The CA3240A and CA3240 are compatible with the industry standard 1458 operational amplifiers in similar packages.

INFORMATION

Drawing

Our advantage :phones, PDA's, notebook comput.ers

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^


Product List
Supply a Series of Electronic Components, full range of semiconductors, active & passive Components.We can help you to get all for bom of the PCB,IN a word, you can get one-stop solution here,


The offers including:
Integrated Circuit, Memory ICs, Diode, Transistor , Capacitor, Resistor, Varistor, Fuse, Trimmer & Potentiometer, Transformer, Battery, Cable, Relay, Switch, Connector, Terminal Block, Crystal & Oscillator, Inductor, Sensor, Transformer, IGBT Driver, LED,LCD, Convertor, PCB (Printed Circuit Board),PCBA (PCB Assembly)

Strong in Brand:
Microchip, MAX, AD, TI, ATMEL, ST, ON, NS, Intersil, Winbond, Vishay, ISSI, Infineon, NEC, FAIRCHILD, OMRON,YAGEO, TDK, etc
