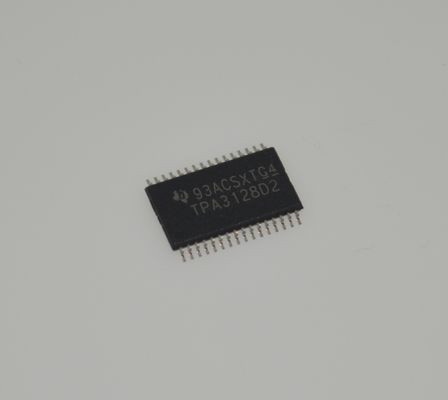

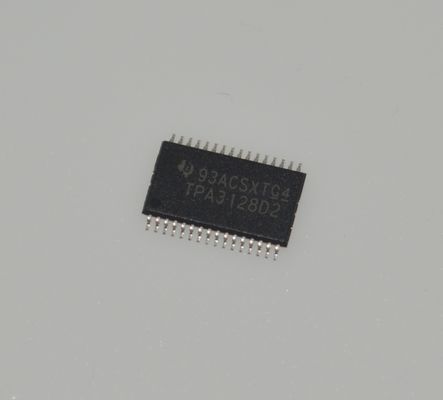

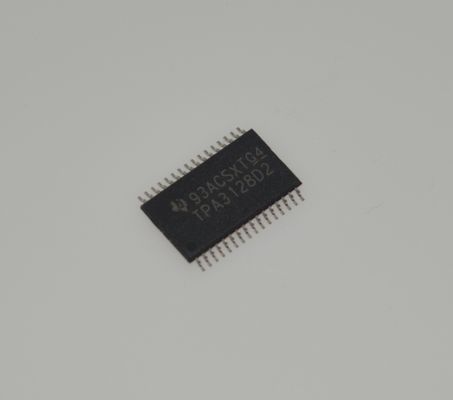

TPA3128D2DAPR 30W Stereo Class-D Amp High Efficiency Low EMI Advanced Protection Wide Voltage Support Compact Design Premium Audio Quality Easy Integration

TPA3128D2DAPR 30W Stereo Class-D Amp High Efficiency Low EMI Advanced Protection Wide Voltage Support Compact Design Premium Audio Quality Easy Integration

andnbsp;

Featuresandnbsp;

andbull; Supports Multiple Output Configurations

andnbsp; andndash; 2andtimes;30WIntoa8-andOmega; BTL Load at 24 V (TPA3128D2)

andnbsp; andndash; 2andtimes;15WIntoa8-andOmega; BTL Load at 15 V (TPA3129D2)

andbull; WideVoltage Range: 4.5 V to 26 V

andbull; Efficient Class-D Operation

andnbsp; andndash; Very Low Idle Current: andlt;23 mA for recommended LC filter configurations

andnbsp; andndash; Greater than 90% Power Efficiency Combined With Low Idle Loss Greatly Eliminates Need for Heat Sink

andnbsp; andndash; Adaptive Modulation Schemes based on Output Power

andnbsp; andndash; Smart Amplifier Drivers to Reduce the Requirement for RC Snubbers

andbull; Multiple Switching Frequencies

andnbsp; andndash; AM Avoidance

andnbsp; andndash; Master and Slave Synchronization

andnbsp; andndash; 300-KHz to 1.2-MHz Switching Frequency

andbull; Feedback Power-Stage Architecture With High PSRR Reduces PSU Requirements

andbull; Programmable Power Limit

andbull; Parallel BTL Mode and Mono-Channel Mode Support

andbull; Supports Both Single and Dual Power Supply Modes

andbull; Integrated Self-Protection Circuits Including Overvoltage, Undervoltage, Overtemperature, DC Detect, and Short Circuit With Error Reporting

andbull; Thermally Enhanced Packages

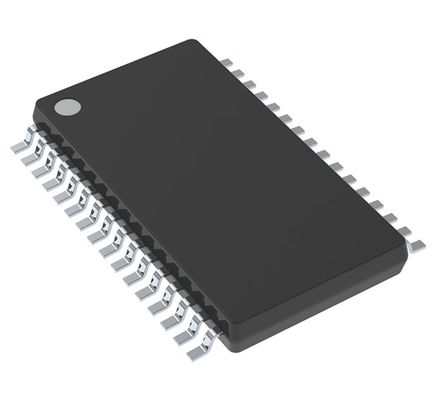

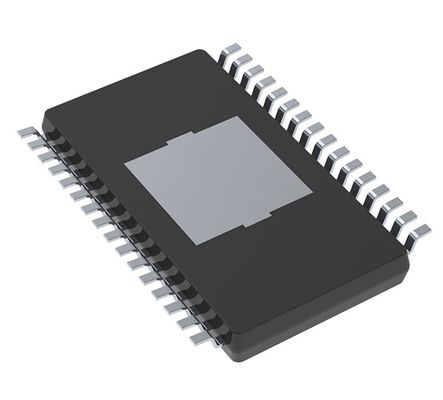

andnbsp; andndash; DAP(32-Pin HTSSOP Pad Down for TPA3128D2 and TPA3129D2)

andnbsp;

Applications

andbull; Bluetooth/Wireless Speakers

andbull; Soundbars

andbull; Mini-Micro Component, Docks

andbull; LCD/LED TVs

andbull; HomeTheaters

andnbsp;

Description

The TPA3128D2 and TPA3129D2 have low idle power loss and helps to extend the battery life of Bluetooth/Wireless speakers and other battery powered audio systems. The high efficiency of the TPA3128D2 device allows it to do 2 andtimes; 30 W without external heat sink on a dual layer PCB. The high efficiency of the TPA3129D2 device allows it to do 2 andtimes; 15 W without external heat sink on a dual layer PCB. This device proposed an efficiency boost Mode, which can dynamically reduced the current ripple of the external LC filter and the idle current .

The TPA31xxD2 advanced oscillator/PLL circuit employs a multiple switching frequency option to avoid AM interferences, which is achieved together with an option of either master or slave option, making it possible to synchronize multiple devices.

The TPA31xxD2 devices are fully protected against faults with short-circuit protection and thermal protection as well as overvoltage, undervoltage, and DC protection. Faults are reported back to the processor to prevent devices from being damaged during overload conditions.
