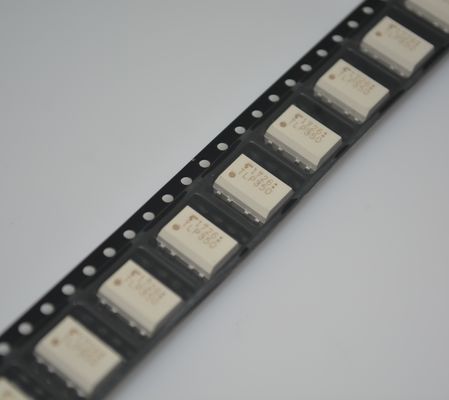

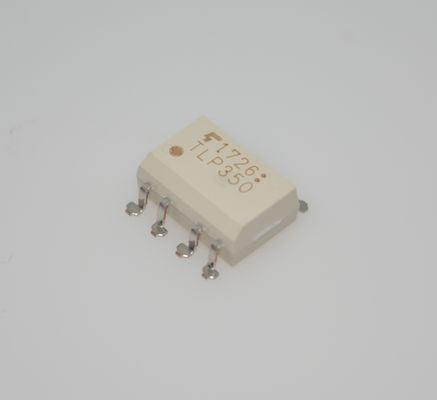

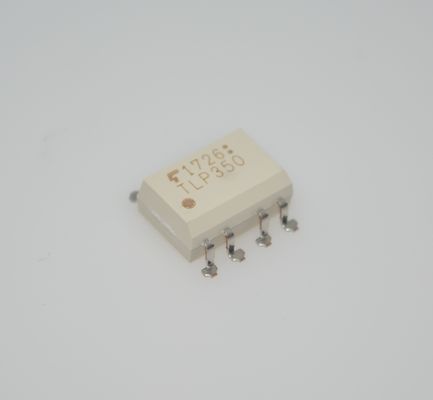

TLP350H(F) High-Speed 1.0A IGBT/MOSFET Gate Drive Optocoupler with 0.5µs Max Delay 50kV/µs CMR -40°C to 110°C Range 5V to 30V Supply SO6 Package and Under Voltage Lockout (UVLO) Protection
Features
Buffer logic type (totem pole output)
Output peak current: ±2.5 A (max)
Operating temperature: -40 to 125℃
Supply current: 3 mA (max)
Supply voltage: 15 to 30 V
Threshold input current: 5 mA (max)
Propagation delay time: 500 ns (max)
Common-mode transient immunity: ±20 kV/µs (min)
Isolation voltage: 3750 Vrms (min)
Applications
• Industrial Inverters
• Air Conditioner Inverters
• MOSFET Gate Drivers
• IGBT Gate Drivers
• Induction Cooktop and Home Appliances
Description
The TLP350H is a photocoupler in a DIP8 package that consists of a GaAℓAs infrared light-emitting diode (LED) optically coupled to an integrated high-gain, high-speed photodetector IC chip. It provides guaranteed performance and specifications at temperatures up to 125 .The TLP350H has an internal Faraday shield that provides a guaranteed Common-mode transient immunity of ±20 kV/µs. It has a totem-pole output that can both sink and source current.
The TLP350H is ideal for IGBT of small capacity to middle capacity and power MOSFET gate drive.
INFORMATION
|
Category
|
|
|
|
Mfr
|
|
|
|
Series
|
-
|
|
|
Packaging
|
Tube
|
|
|
Part Status
|
Active
|
|
|
Technology
|
Optical Coupling
|
|
|
Number of Channels
|
1
|
|
|
Voltage - Isolation
|
3750Vrms
|
|
|
Common Mode Transient Immunity (Min)
|
20kV/µs
|
|
|
Propagation Delay tpLH / tpHL (Max)
|
500ns, 500ns
|
|
|
Pulse Width Distortion (Max)
|
350ns
|
|
|
Rise / Fall Time (Typ)
|
15ns, 8ns
|
|
|
Current - Output High, Low
|
3mA, 3mA
|
|
|
Current - Peak Output
|
2.5A
|
|
|
Voltage - Forward (Vf) (Typ)
|
1.55V
|
|
|
Current - DC Forward (If) (Max)
|
20 mA
|
|
|
Voltage - Output Supply
|
15V ~ 30V
|
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
|
Mounting Type
|
Through Hole
|
|
|
Package / Case
|

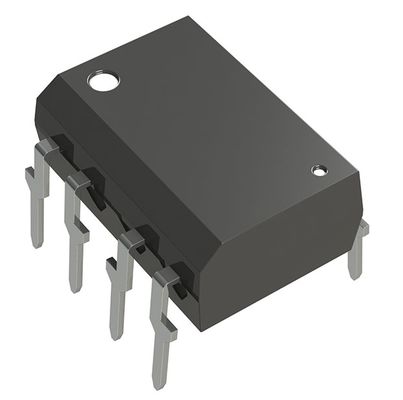

8-DIP (0.300", 7.62mm)
|
|
|
Supplier Device Package
|
8-DIP
|
|
|
Base Product Number
|
Drawing
