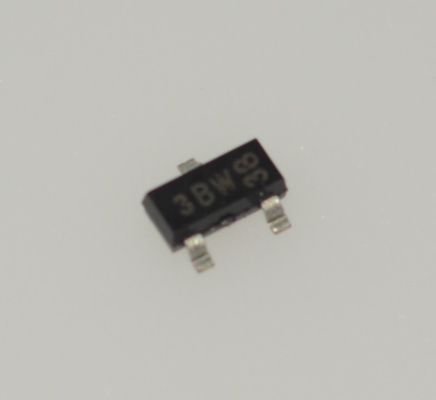

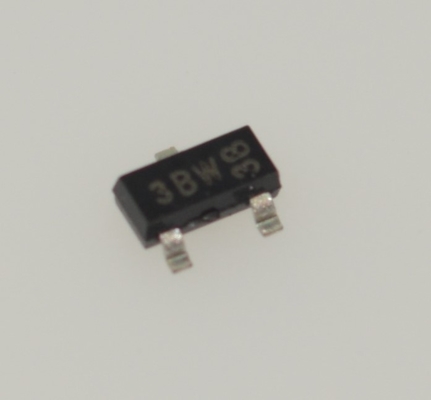

BC856B PNP General Purpose Transistor 65V 100mA SOT-23 Package Low Noise High Current Gain 200-450 250MHz Frequency Complementary to BC846B, RoHS Compliant Tape & Reel
Features
General Purpose
Three current gain groups
Compliant to RoHS (w/o exemp.),
REACH, Conflict Minerals ')
Applications
Signal processing
Switching
Amplification
Description
1:Electrical Parameters
Collector-Emitter Voltage (VCEO): -65V
Collector Current (IC): -100mA (continuous)
Current Gain (hFE): 220-475 (@2mA, 5V)
Transition Frequency (fT): 150MHz
Noise Figure: Low-noise design for small-signal amplification
2:Packaging & Compliance

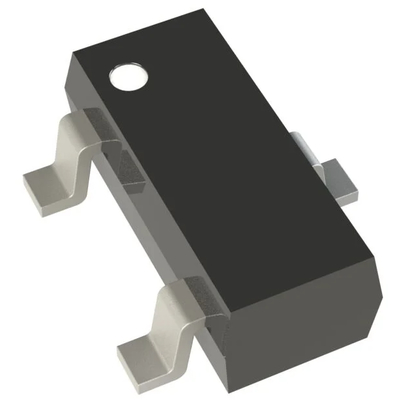

Package: SOT-23 (3-pin)
Environmental Compliance: Lead-free (Pb-Free), RoHS compliant
Packaging Option: Tape & Reel, suitable for automated production
3:Performance Advantages
High Gain Linearity: Stable gain characteristics across a wide current range
Low Saturation Voltage: Enhanced switching efficiency (typical VCEsat ≈ -0.7V @-10mA)
Temperature Stability: Operating temperature range of -55°C to +150°C
INFORMATION
|
Category
|
|
|
|
Mfr
|
|
|
|
Series
|
-
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Transistor Type
|
|
|
|
Current - Collector (Ic) (Max)
|
100 mA
|
|
|
Voltage - Collector Emitter Breakdown (Max)
|
65 V
|
|
|
Vce Saturation (Max) @ Ib, Ic
|
650mV @ 5mA, 100mA
|
|
|
Current - Collector Cutoff (Max)
|
15nA (ICBO)
|
|
|
DC Current Gain (hFE) (Min) @ Ic, Vce
|
220 @ 2mA, 5V
|
|
|
Power - Max
|
250 mW
|
|
|
Frequency - Transition
|
100MHz
|
|
|
Operating Temperature
|
-55°C ~ 150°C (TJ)
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
TO-236-3, SC-59, SOT-23-3
|
|
|
Supplier Device Package
|
SOT-23-3 (TO-236)
|
|
|
Base Product Number
|
Drawing
