AMCV-0603-5R5-C101N-T 5.5nH 0603 Multilayer RF Inductor with 5% Tolerance 100MHz SRF 0.15Ω DCR High Q Factor Tape & Reel Packaging for High-Frequency Circuits

AMCV-0603-5R5-C101N-T 5.5nH 0603 Multilayer RF Inductor with 5% Tolerance 100MHz SRF 0.15Ω DCR High Q Factor Tape & Reel Packaging for High-Frequency Circuits

Features

SMD type, small size suitable for high density mounting

Excellent clamping ratio and strong capability of voltage surge suppression

Excellent solderability (Ni, Sn plating)

Applications

Transient voltage protection and voltage surge suppression forLED lighting

Suitable for LCD-TV, STB, Switch, Router, PLC, SecuritySystem, smart meters, mobile phones

Suppressing Induced /switching over-voltage caused bylightning and power

Protecting DC-DC Module, I/O ports, IC driver

Description

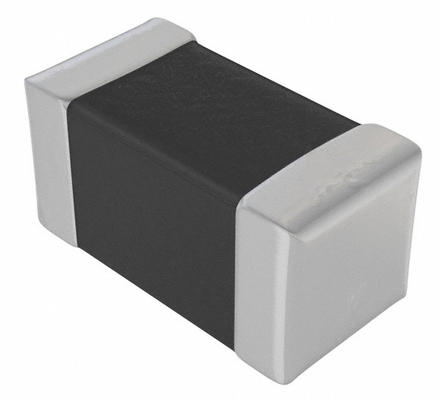

The AMCV-0603-5R5-C101N-T is a surface mount device (SMD) RF inductor manufactured using multilayer ceramic technology, in a standard 0603 (1608 metric) package. Its core design aims to provide stable and high-performance inductive solutions for high-frequency circuits.

This component offers a fixed inductance value of 5.5nH with a tight tolerance of ±5%, ensuring consistency and precision in circuit design. It features excellent high-frequency characteristics with a self-resonant frequency (SRF) as high as 100MHz, making it suitable for various RF applications operating below this frequency. Meanwhile, its extremely low DC resistance (DCR) of just 0.15Ω effectively reduces energy loss and heat generation during current passage. Combined with its high Q (Quality Factor) value, this inductor enables low insertion loss and high-efficiency signal transmission in resonant circuits, impedance matching, and filtering applications.

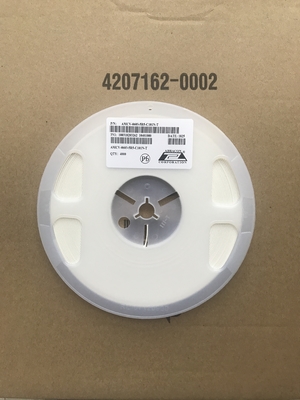

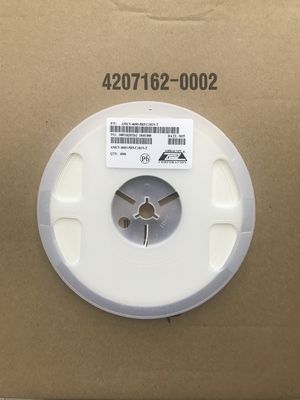

The component comes in industry-standard tape and reel packaging, perfectly compatible with automated pick-and-place equipment for large-scale production processes, effectively improving assembly efficiency and reliability.

In summary, with its compact size, precise inductance value, excellent high-frequency performance, and low-loss characteristics, the AMCV-0603-5R5-C101N-T serves as an ideal passive component choice for wireless communication modules, RFID readers, mobile phones, GPS devices, and other high-frequency electronic circuits.

INFORMATION

Drawing
