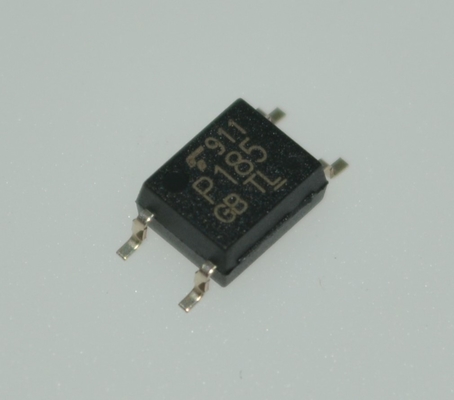

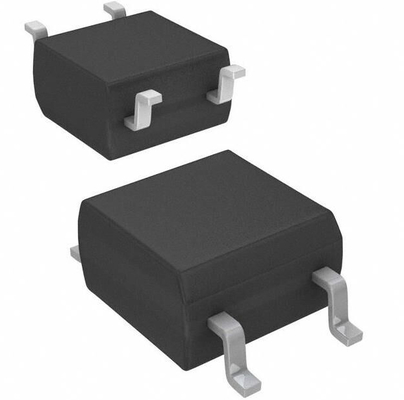

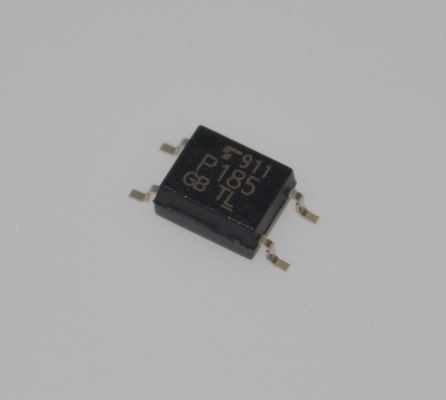

TLP185(GB-TPL,SE 5kV/rms Mini-Flat SOP Photocoupler 50mA LED Current High CTR 50-600% High Speed 1µs Max Wide Temp -55 to 110°C 3750Vrms Isolation Low Power Safety Approvals
Features
Collector-emitter voltage: 80 V (min)
Current transfer ratio: 50% (min)
GB Rank: 100% (min)
Isolation voltage: 3750 Vrms (min)
Operating temperature: -55 to 110
Safety standards UL-recognized:
UL 1577, File No.E67349
cUL-recognized: CSA Component Acceptance Service No.5A File No.E67349
VDE-approved: EN 60747-5-5, EN 62368-1 (Note 1)
CQC-approved: GB4943.1, GB8898 Japan and Thailand Factory
Applications
• Office Equipment
• Programmable Logic Controllers (PLCs)
• AC Adapters
• I/O Interface Boards
Description
The TLP185(SE consist of a photo transistor optically coupled to an infrared LED. The TLP185(SE photocoupler is housed in the very small and thin SO6 package. Since TLP185(SE is smaller than DIP package, it's suitable for high-density surface mounting application such
INFORMATION
|
Category
|
|
|
|
Manufacturer
|
Toshiba Semiconductor and Storage
|
|
|
Series
|
-
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Number of Channels
|
1
|
|
|
Voltage - Isolation
|
3750Vrms
|
|
|
Current Transfer Ratio (Min)
|
100% @ 5mA
|
|
|
Current Transfer Ratio (Max)
|
600% @ 5mA
|
|
|
Turn On / Turn Off Time (Typ)
|
3µs, 3µs
|
|
|
Rise / Fall Time (Typ)
|
2µs, 3µs
|
|
|
Input Type
|
DC
|
|
|
Output Type
|
Transistor
|
|
|
Voltage - Output (Max)
|
80V
|
|
|
Current - Output / Channel
|
50mA
|
|
|
Voltage - Forward (Vf) (Typ)
|
1.25V
|
|
|
Current - DC Forward (If) (Max)
|
50 mA
|
|
|
Vce Saturation (Max)
|
300mV
|
|
|
Operating Temperature
|
-55°C ~ 110°C
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
6-SOIC (0.173", 4.40mm Width), 4 Leads
|
|
|
Supplier Device Package
|
6-SOP
|
|
|
Base Product Number
|
Drawing
