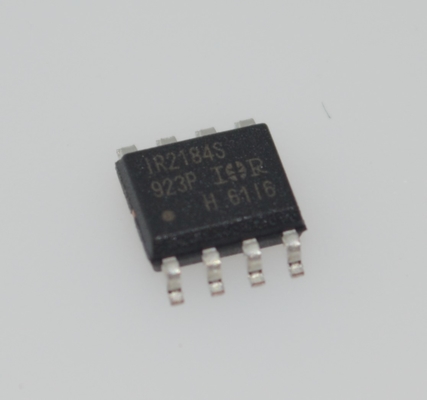

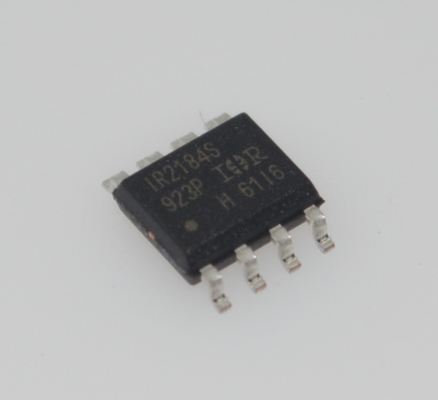

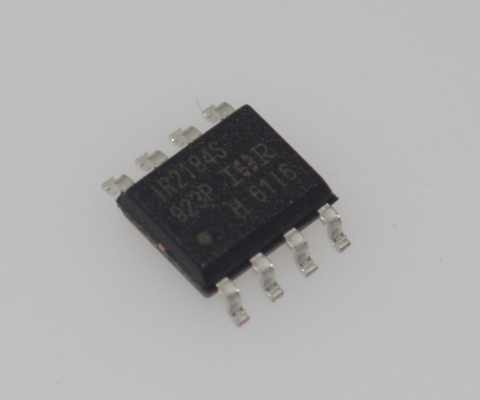

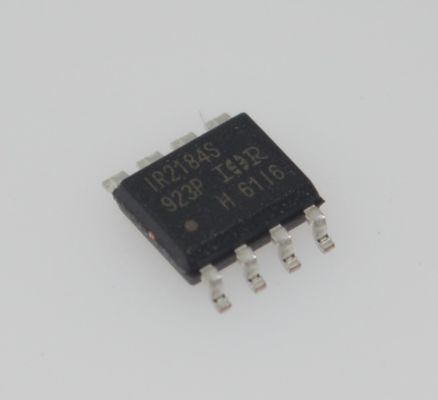

IR2184STRPBF 600V High/Low Side Driver 1.9A Peak Output Fast Switching UVLO Protection Compact SOIC-8 Package for Motor Drives & Inverters
Features
•Floating channel designed for bootstrap operation Fully operational to +600V Tolerant to negative transient voltage dV/dt immune
•Gate drive supply range from 10 to 20V
•Undervoltage lockout for both channels
•3.3V and 5V input logic compatible
•Matched propagation delay for both channels
•Logic and power ground +/- 5V offset.
•Lower di/dt gate driver for better noise immunity
•Output source/sink current capability 1.4A/1.8A
•Also available LEAD-FREE (PbF)
Description
The IR2184(4)(S) are high voltage, high speed power MOSFET and IGBT drivers with dependent high and low side referenced output channels. Pro prietary HVIC and latch immune CMOS technologies enable rugge dized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which operates up to 600 volts.
Applications
Motor Drive Systems
Brushless DC (BLDC) motor drivers
Permanent Magnet Synchronous Motor (PMSM) control
Industrial servo drive systems
Power Conversion Equipment
High-frequency switch-mode power supplies (SMPS)
DC-AC inverters (solar/UPs applications)
Resonant power converters
Industrial Automation
Industrial robotic arm drives
CNC machine tool spindle control
Automated production line motor control
New Energy Vehicles
Electric vehicle motor controllers
On-board chargers (OBC)
Electric power steering systems
Home Appliances
Inverter air conditioner compressor drives
High-end washing machine motor control
Smart appliance power modules
INFORMATION
|
Category
|
|
|
|
Manufacturer
|
Infineon Technologies
|
|
|
Series
|
-
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
DigiKey Programmable
|
Not Verified
|
|
|
Driven Configuration
|
Half-Bridge
|
|
|
Channel Type
|
Synchronous
|
|
|
Number of Drivers
|
2
|
|
|
Gate Type
|
IGBT, MOSFET (N-Channel)
|
|
|
Voltage - Supply
|
10V ~ 20V
|
|
|
Logic Voltage - VIL, VIH
|
0.8V, 2.7V
|
|
|
Current - Peak Output (Source, Sink)
|
1.9A, 2.3A
|
|
|
Input Type
|
Non-Inverting
|
|
|
High Side Voltage - Max (Bootstrap)
|
600 V
|
|
|
Rise / Fall Time (Typ)
|
40ns, 20ns
|
|
|
Operating Temperature
|
-40°C ~ 150°C (TJ)
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
8-SOIC (0.154", 3.90mm Width)
|
|
|
Supplier Device Package
|
8-SOIC
|
|
|
Base Product Number
|
Drawing
