تفاصيل المنتج:
شروط الدفع والشحن:
|
| Frequency Stability: | ±50ppm | Frequency Tolerance: | ±30ppm |
|---|---|---|---|
| Operating Temperature: | -40°C ~ 85°C | Load Capacitance: | 18pF |
| Package / Case: | HC-49/US | Name: | Passive Electronic Components |
| إبراز: | EN5311QI Synchronous Buck Converter,5A Synchronous Buck Converter,QFN-20 Synchronous Buck Converter,5A Synchronous Buck Converter,QFN-20 Synchronous Buck Converter |
||

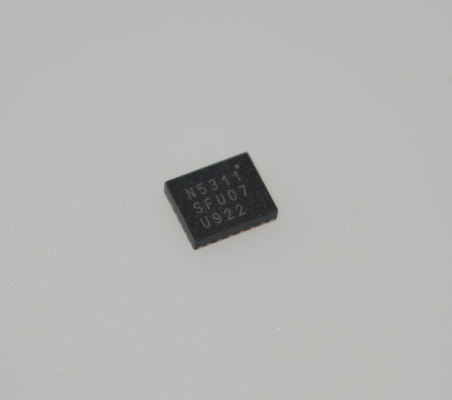

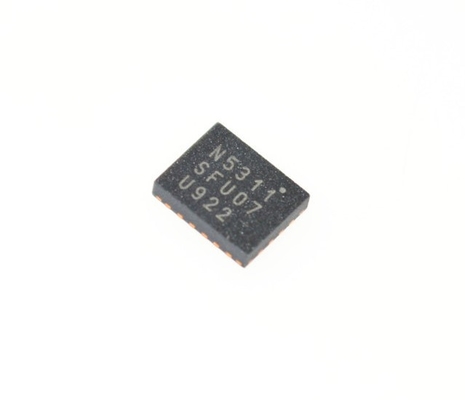

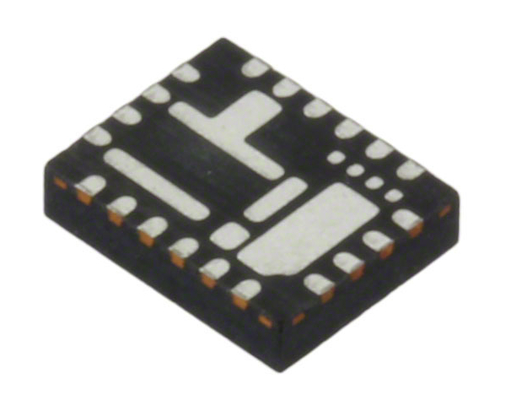

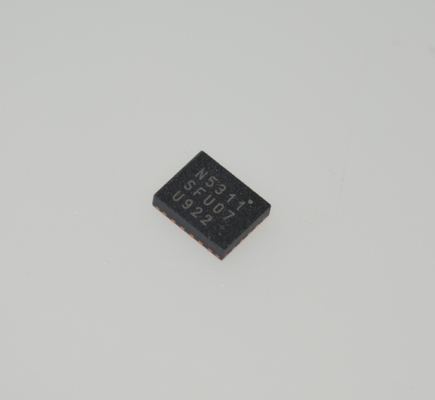

EN5311QI 5A Synchronous Buck Converter 4.5-36V Input 95% Efficiency QFN-20 -40°C to +125°C AEC-Q100
FEATURES
Revolutionary Integrated inductor
5mm x 4mm x1.1mm QFN package
Very small total solution foot print
APPLICATIONS
Area constrained applications
Noise Sensitive Applications such as A/V and RF
LDO replacement for improved thermals
Set top box/home gateway
Smart phones, PDAs
VolP and Video phones
Personal Media Player
DESCRIPTION
The Ultra-Low-Profile EN5311Ql is targeted toapplications where board area and profile are critical.EN5311Ql is a complete power conversion solutionrequiring only two low cost ceramic MLCC caps.Inductor,MOSFETS,PWM,and compensation areintegrated into a tiny 5mmx4mm x1.1mm QFNpackage. The EN5311Ql is engineered to simplifydesign and to minimize layout constraints. 4 MHzswitching frequencyand internal typelcompensation provides superior transient response.With a 1.1 mm profile, the EN5311Ql is ideal for spaceand height constrained applications.
A 3-pin VD output voltage selector provides sevenpre-programmed output voltages along with anoption for external resistor divider. Output voltagecan be programmed on-the-fly to provide fast,dynamic voltage scaling.
INFORMATION
|
Category
|
|
|
|
Mfr
|
|
|
|
Series
|
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
|
|
|
Part Status
|
Obsolete
|
|
|
Type
|
Non-Isolated PoL Module
|
|
|
Number of Outputs
|
1
|
|
|
Voltage - Input (Min)
|
2.4V
|
|
|
Voltage - Input (Max)
|
6.6V
|
|
|
Voltage - Output 1
|
|
|
|
Voltage - Output 2
|
-
|
|
|
Voltage - Output 3
|
-
|
|
|
Current - Output (Max)
|
1A
|
|
|
Applications
|
ITE (Commercial)
|
|
|
Features
|
Remote On/Off, OCP, OTP, SCP, UVLO
|
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
|
Efficiency
|
94%
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
20-PowerTQFN Module
|
|
|
Size / Dimension
|
0.20" L x 0.16" W x 0.04" H (5.0mm x 4.0mm x 1.1mm)
|
|
|
Supplier Device Package
|
20-QFN (5x4)
|
|
|
Control Features
|
Enable, Active High
|
|
|
Base Product Number
|
Drawing
